HY-X3
Small field of view, micrometer level accuracy; Suitable for industrial testing and measurement; Anti reflective; Customized testing and measurement software.
| Product parameters | |
|---|---|

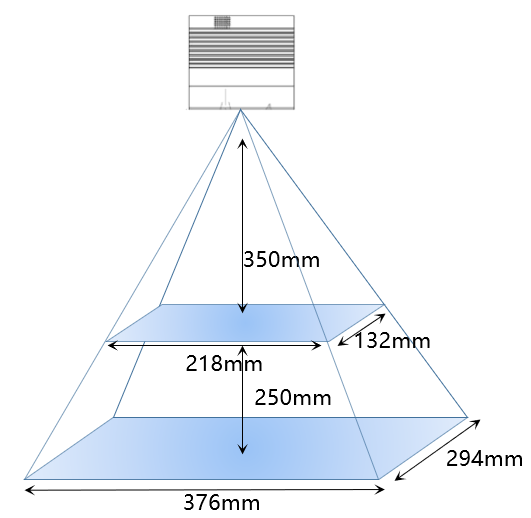

Field of view (mm2) | 218×132 ~ 376×294 |
Scanning Speed (Hz) | 15 |
Working Distance (mm) | 350 ~ 600 |
Applicable depth of field (mm) | 250 |
Measurement Accuracy (mm) | 0.001 ~ 0.01 |
Operating Temperature (°C) | -20~50 |
Humidity (%RH non-condensing) | 20~90 |
Ingress protection | IP65 |
HY-MX
Medium field of view, suitable for disorderly grasping, detection, and measurement; High precision, anti reflective; A disordered sorting system based on artificial intelligence; Support mixed and disorderly sorting of multiple items.
| Product parameters | |
|---|---|

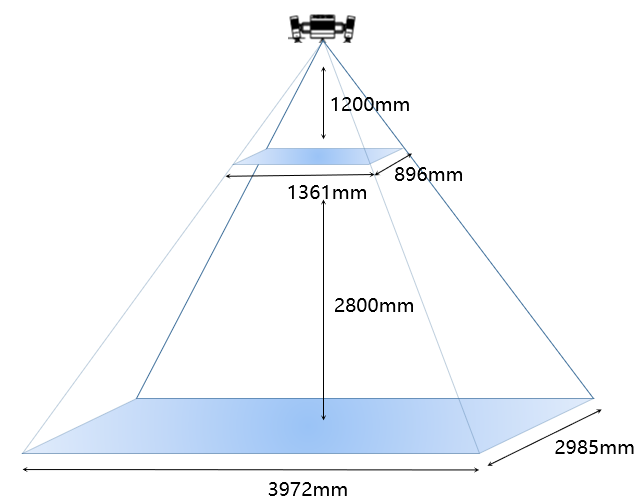

Field of view (mm2) | 1361×896 ~ 2985×3972 |
Scanning Speed (Hz) | 3 |
Working Distance (mm) | 1200 ~ 4000 |
Applicable depth of field (mm) | 2800 |
Measurement Accuracy (mm) | 0.1 ~ 2 |
Operating Temperature (°C) | -20~50 |
Humidity (%RH non-condensing) | 20~90 |
Ingress protection | IP65 |
HY-X5
Large field of view and depth of field; Suitable for large-scale 3D imaging; Assemblable 3D camera; Good 3D imaging effect on reflective plastics, soft bags, etc; Customized robot disassembly and palletizing software, supporting mixed disassembly and palletizing.
| Product parameters | |
|---|---|

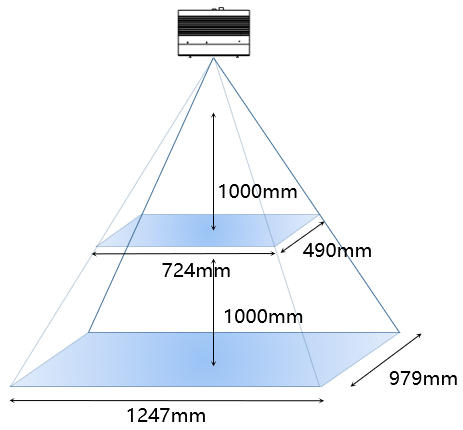

Field of view (mm2) | 724×490 ~ 1247×979 |
Scanning Speed (Hz) | 10 |
Working Distance (mm) | 1000 ~ 2000 |
Applicable depth of field (mm) | 1000 |
Measurement Accuracy (mm) | 0.01 ~ 1 |
Operating Temperature (°C) | -20~50 |
Humidity (%RH non-condensing) | 20~90 |
Ingress protection | IP65 |
