Franka Production 3 Kit

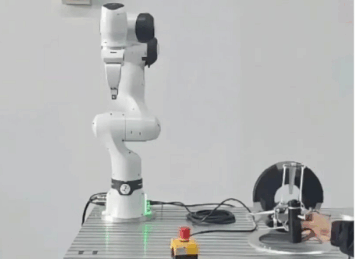

Process automation just got simpler. The foundational app lowers your barrier to entry into the world of process automation, allowing you to get started quickly and independently. Break down tasks into small steps, set actions, exchange signals, and handle errors. This kit contains everything you need, including pick and place, handling, and much more.

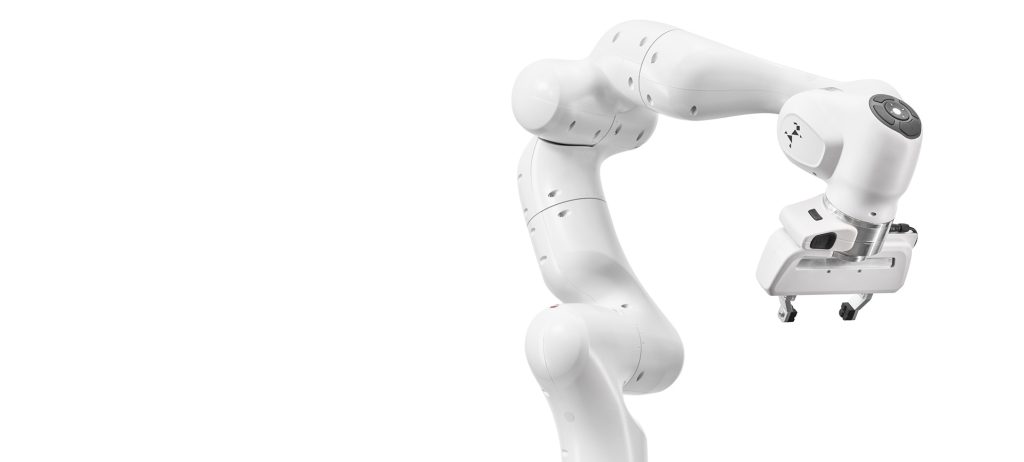

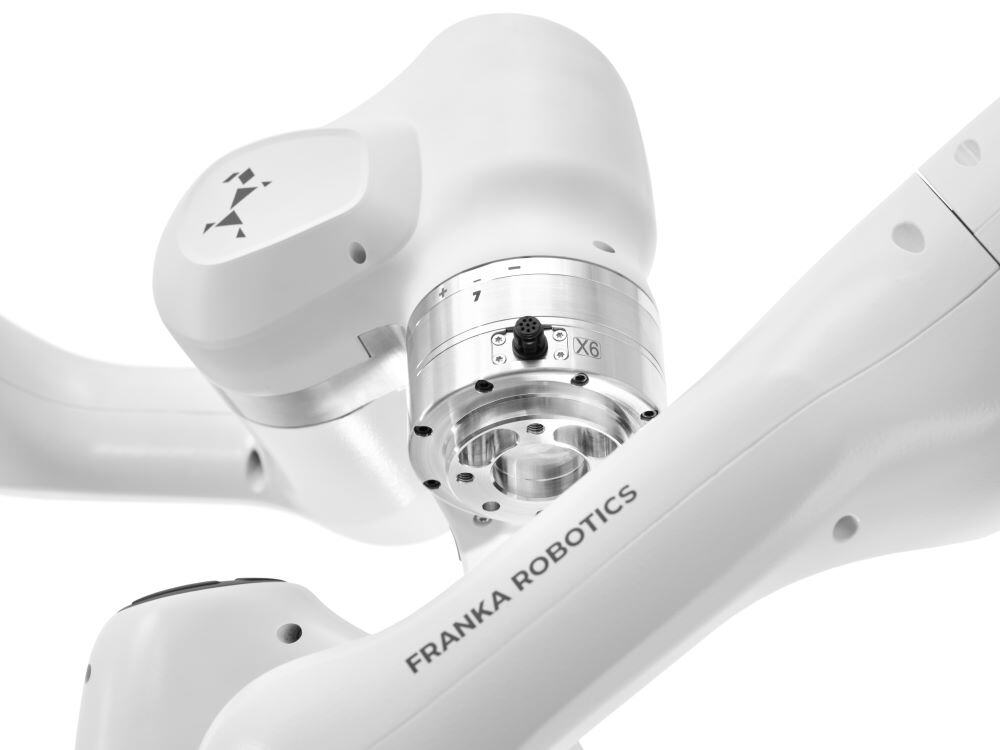

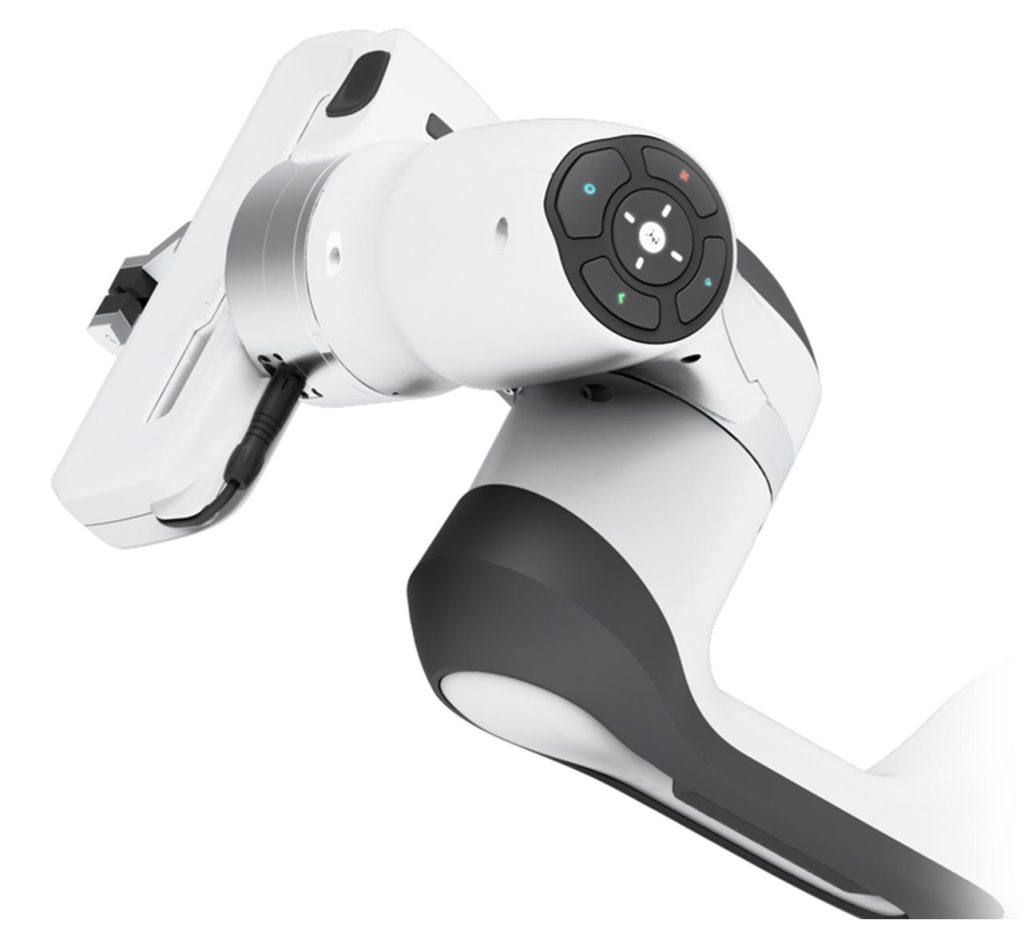

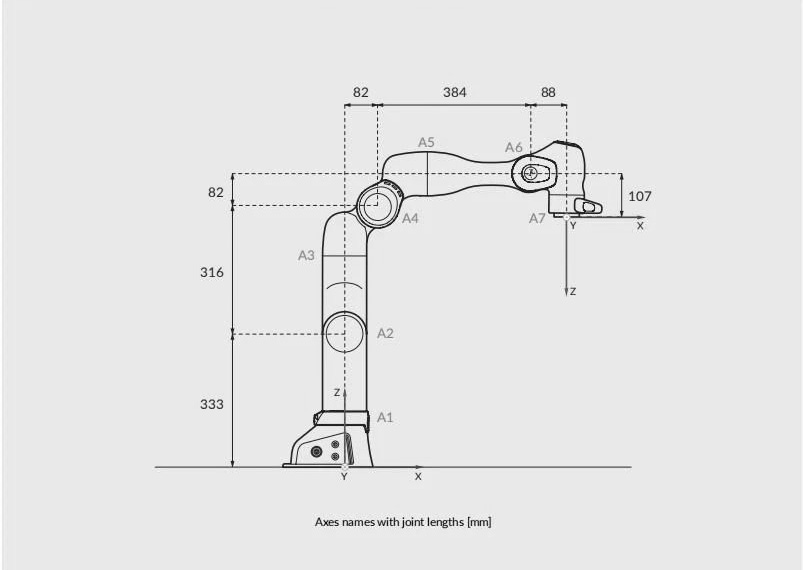

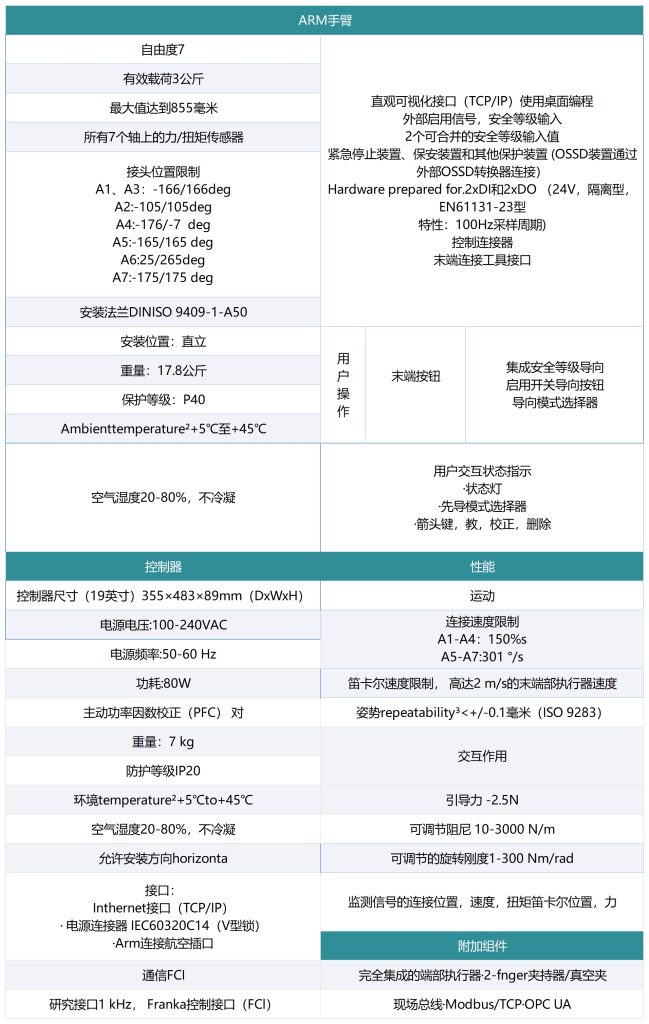

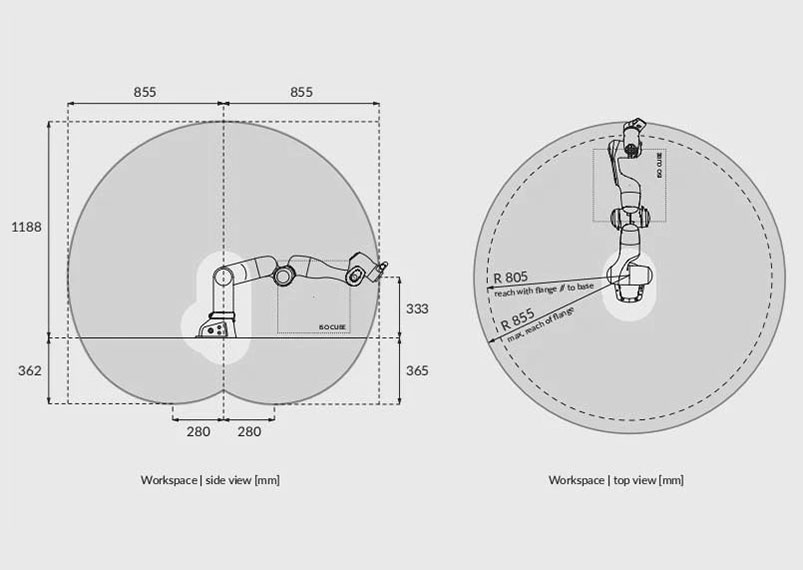

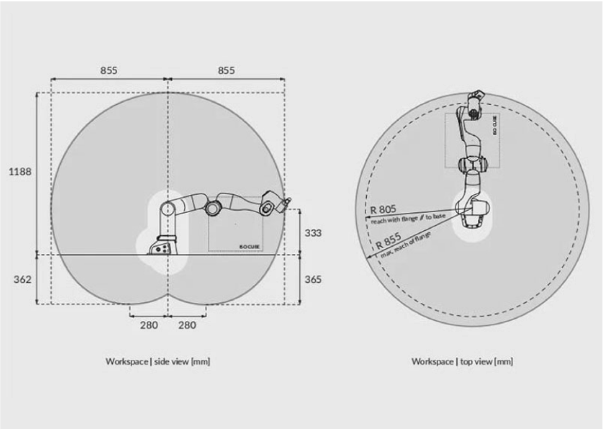

The robotic system of Franka Production 3 consists of a robotic arm and its control. The force-sensitive, flexible robotic arm features 7 DOFs, torque sensors at each joint, and an industrial-grade attitude repeatability error rate of +/-0.1 mm, maintaining minimal trajectory deviation even at high speeds. It has a payload of 3 kg, an arm span of up to 855 mm, and a workspace coverage of 94.5%

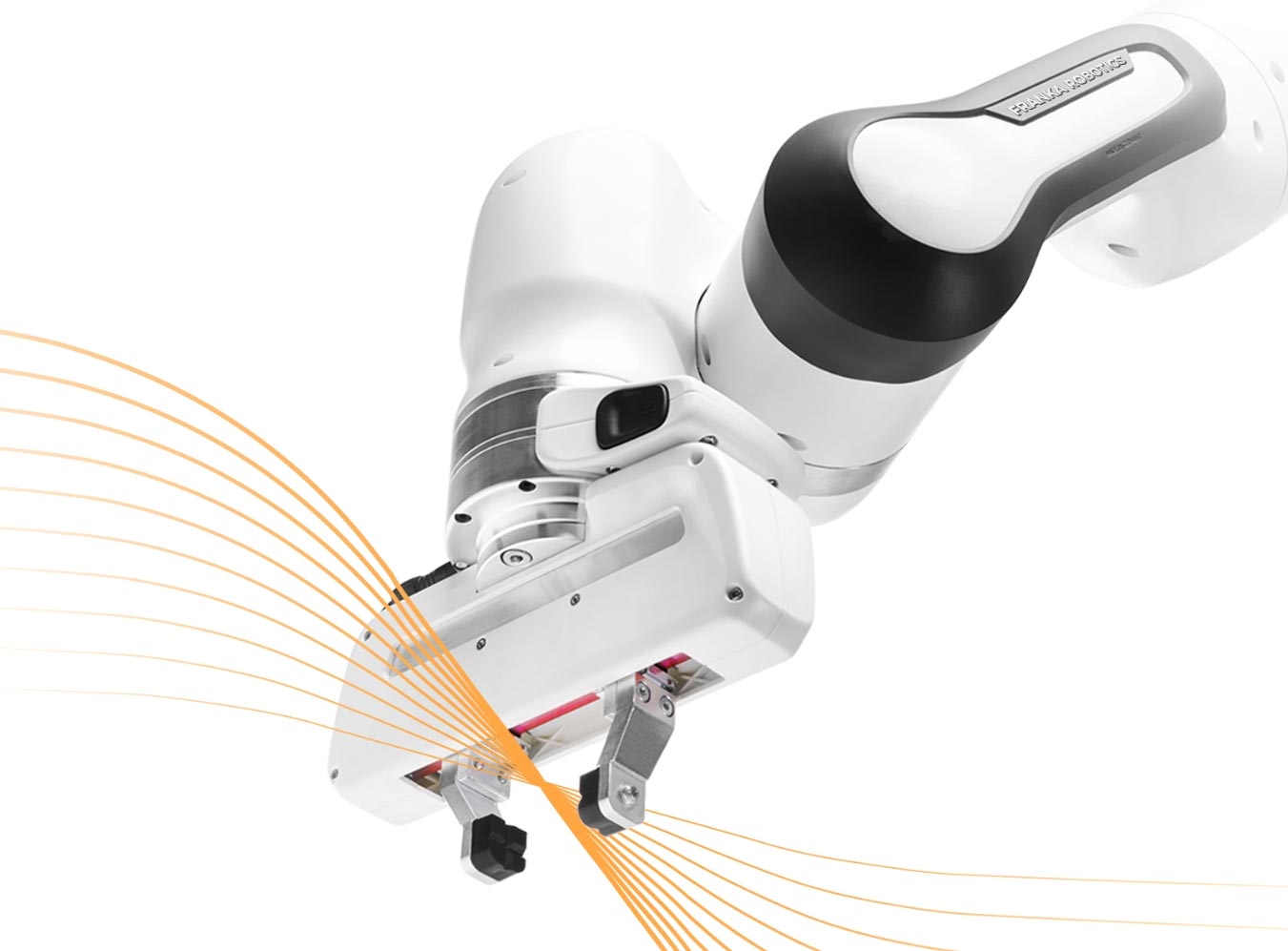

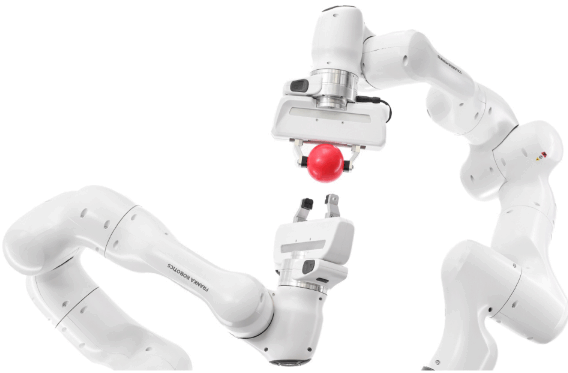

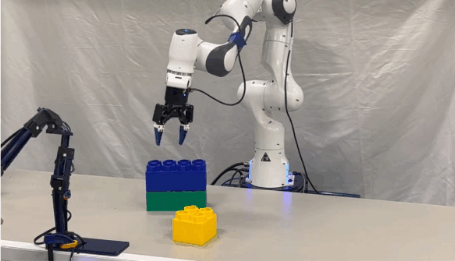

Franka Emika’s Hand is a 2-finger jaw with replaceable fingertips that is fully integrated with Franka Production 3’s software, making it also pluggable and easy to use. The gripper is easily replaceable and is suitable for a wide range of objects that need to be grasped, such as using a 3D printed fingertip.
The right interface for every use case
Set up three levels of access to the robot to address different needs and skills, serving the full field of robotics research.
DESK
Desk makes programming time-saving and labor-saving, making it the best interface for rapid prototyping, simple human-computer interaction research, and presentations.
RIDE
It enables researchers to fully integrate the Franka Emika system into their experimental setup and take full advantage of its integrated, high-performance controller. It's also a great tool for teaching introductory robotics.
FCI
FCI bypasses robot control, allowing researchers to run their own control algorithms at 1kHz on an external computer running in real time. It is the ideal interface for exploring low-level planning and control schemes.
